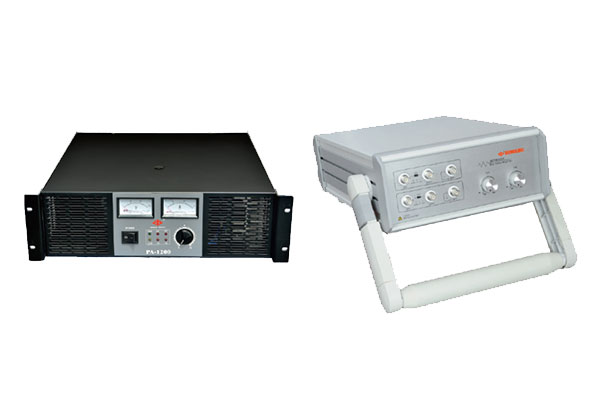

PA/MP Series Power Amplifier
Structure and Features
As an important part of vibration testing systems, PA/MP series power amplifier is specially designed for use in small vibration shakers and acoustical testing systems. It features a wide frequency response range, good linearity and waveforms with low harmonic distortion. In addition, the power amplifier comes with complete safety protection functions, ensuring high safety during operation.
Technical Parameters
| Series / Specific Specification | PA Series | MP Series | ||
| Type | Linear power amplifier | Digital power amplifier | Digital power amplifier | Digital power amplifier |
| Rated Power(W) | 600/1200/2000(10 Ohms) | 500(10 Ohms) | 1200(10 Ohms) | 2000(10 Ohms) |
| Frequency Response (Hz) | 5 -20k ＜±2dB | 5 -20k ＜±2dB | 5 -20k ＜±2dB | 5 -20k ＜±2dB |
| Total Harmonic Distortion | ＜1%(1KHz) | ＜1%(1KHz) | ＜1%(1KHz) | ＜1%(1KHz) |
| Input Impedance (kOhms) | 10 | 10 | 10 | 10 |
| Input Level (dB) | 0 | 0 | 0 | 0 |
| Signal-to-Noise Ratio (dB) | ＞90 | ＞90 | ＞90 | ＞90 |
| Power | 110VAC 60Hz/220VAC 50Hz | 110VAC 60Hz/220VAC 50Hz | 110VAC 60Hz/220VAC 50Hz | 110VAC 60Hz/220VAC 50Hz |
| Partial Power Consumption (W) | 600/1200/2000 | 500 | 1200 | 2000 |
| Weight(kg) | 10/15/24 | 4 | 8 | 12 |
| Dimension (L×W×H: mm) |
480×470×132 | 260×360×110 | 260×400×110 | 260×400×110 |
| Packing Dimension (L×W×H: mm) | 540×530×200 | 320×400×170 | 320×440×170 | 320×440×170 |
